Chicago, Illinois · Residential pool
Chicago Residential Transformation
A private pool received a patterned 80-mil finish with a custom sun deck and seamless skimmer-flange detailing.

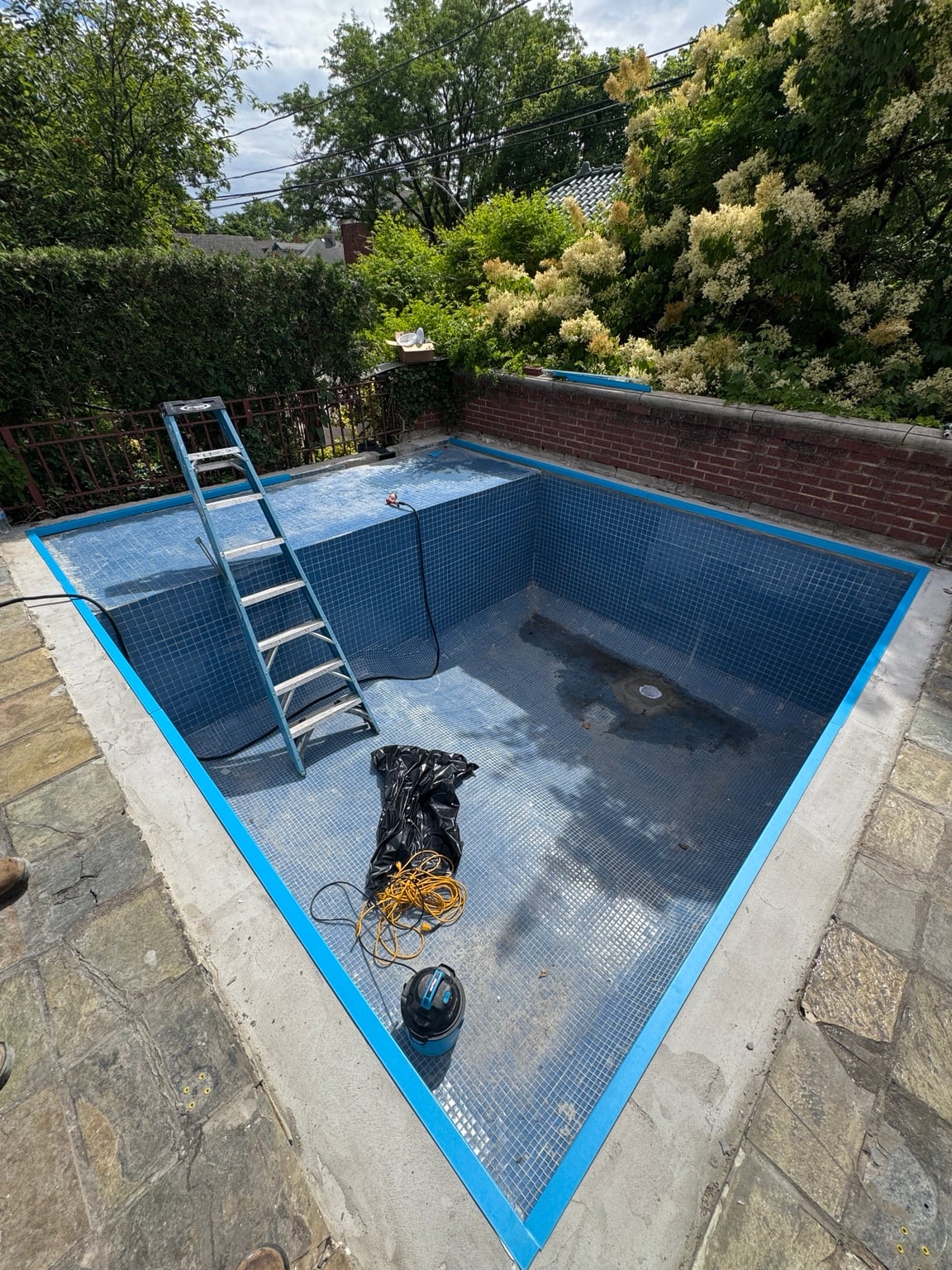

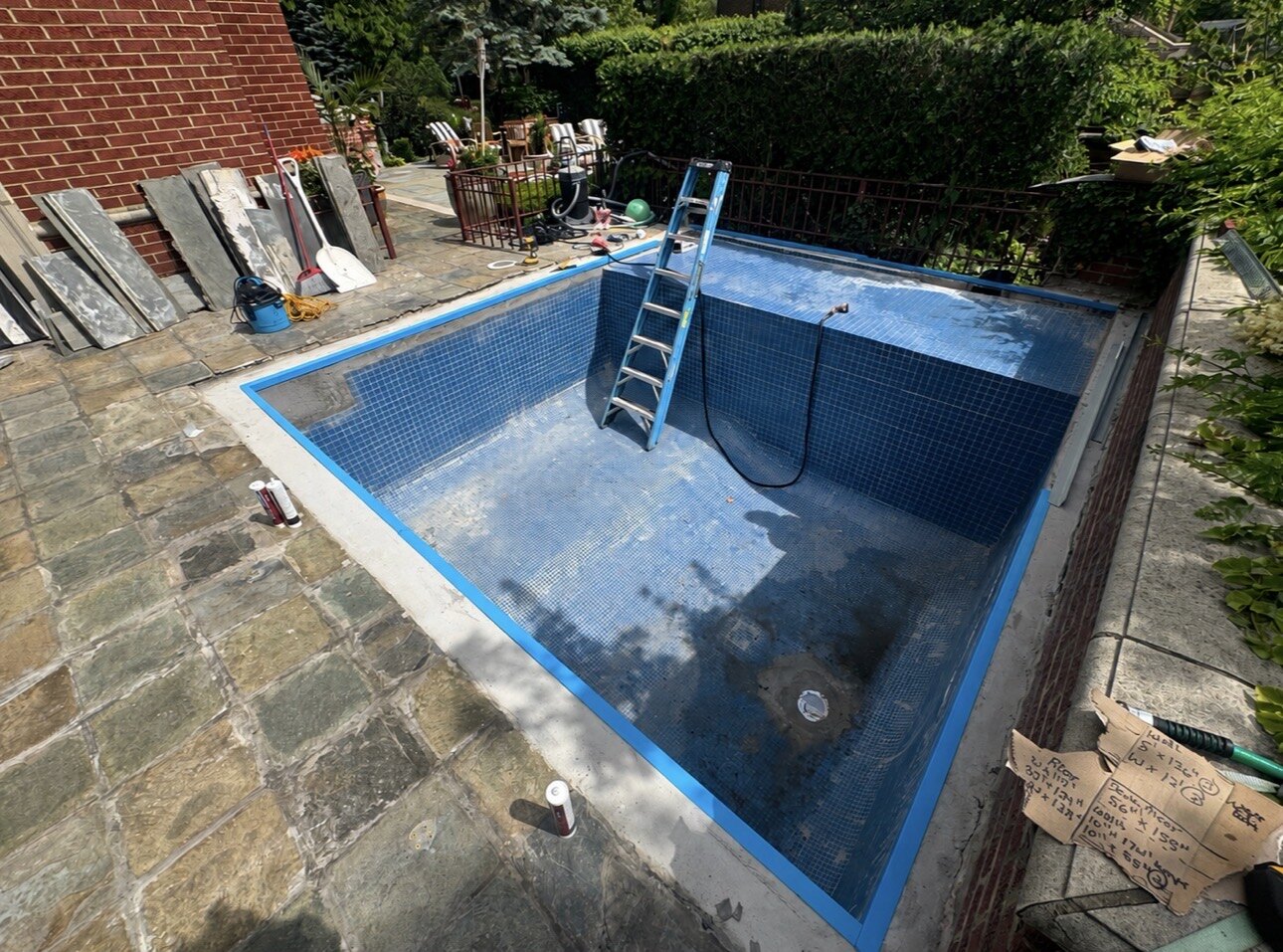

The existing condition
What the crew walked into.
The compact urban pool included a sun deck, steps and skimmer transition that needed to read as one intentional finish rather than separate patched details.
Field execution
How the system was rebuilt.
An 80-mil patterned membrane was fitted to the pool geometry over the specified protection layer, with the sun deck and skimmer flange detailed into the completed surface.
Scope of work
Detailed for long-term performance.
Each item was coordinated as part of the same waterproofing assembly—not treated as a separate finish detail.

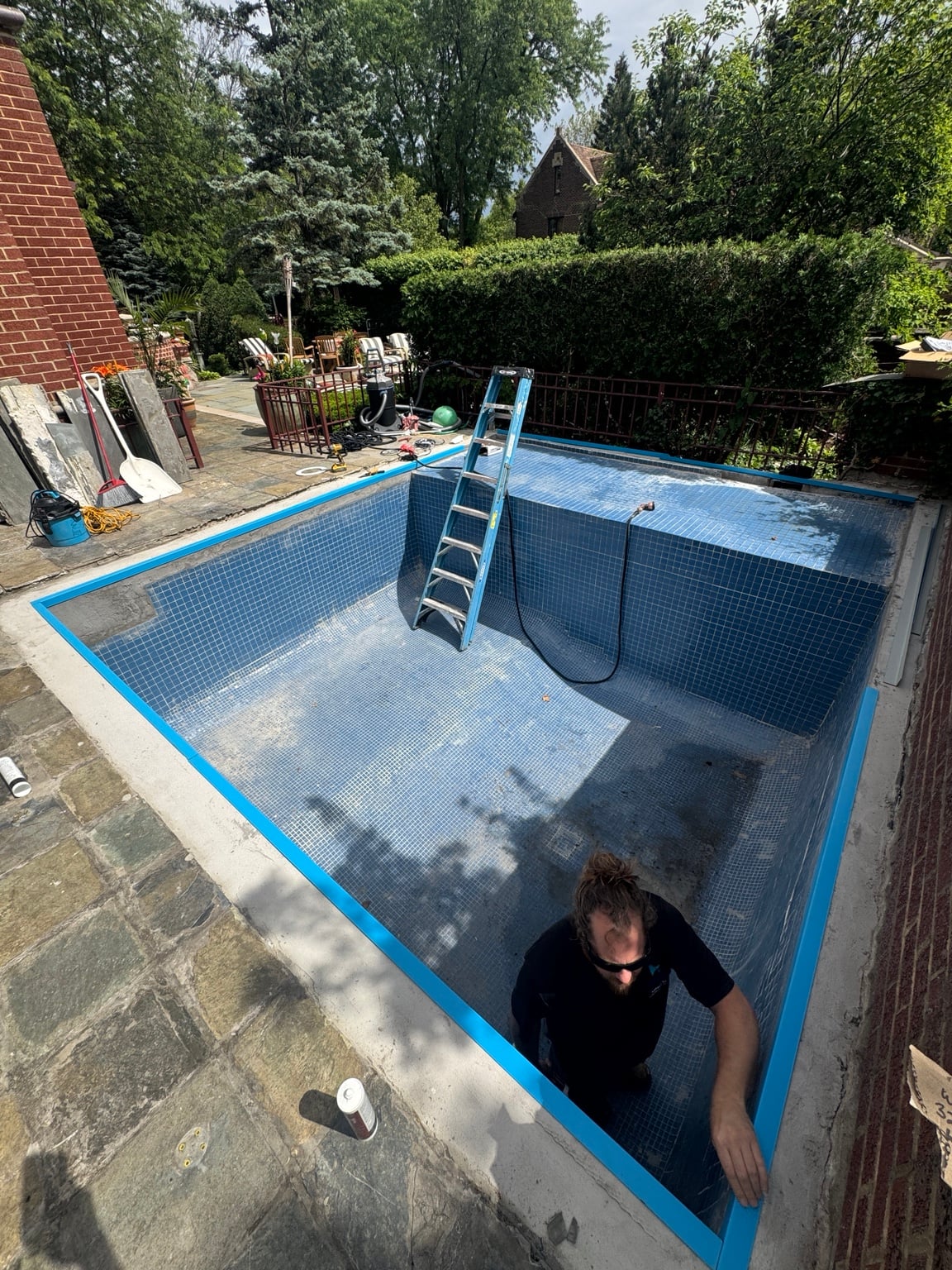

- 01Existing surface review and perimeter preparation
- 02150-mil fleece protection layer
- 0380-mil RENOLIT reinforced PVC installation
- 04Custom sun deck integration
- 05Custom seamless skimmer flange

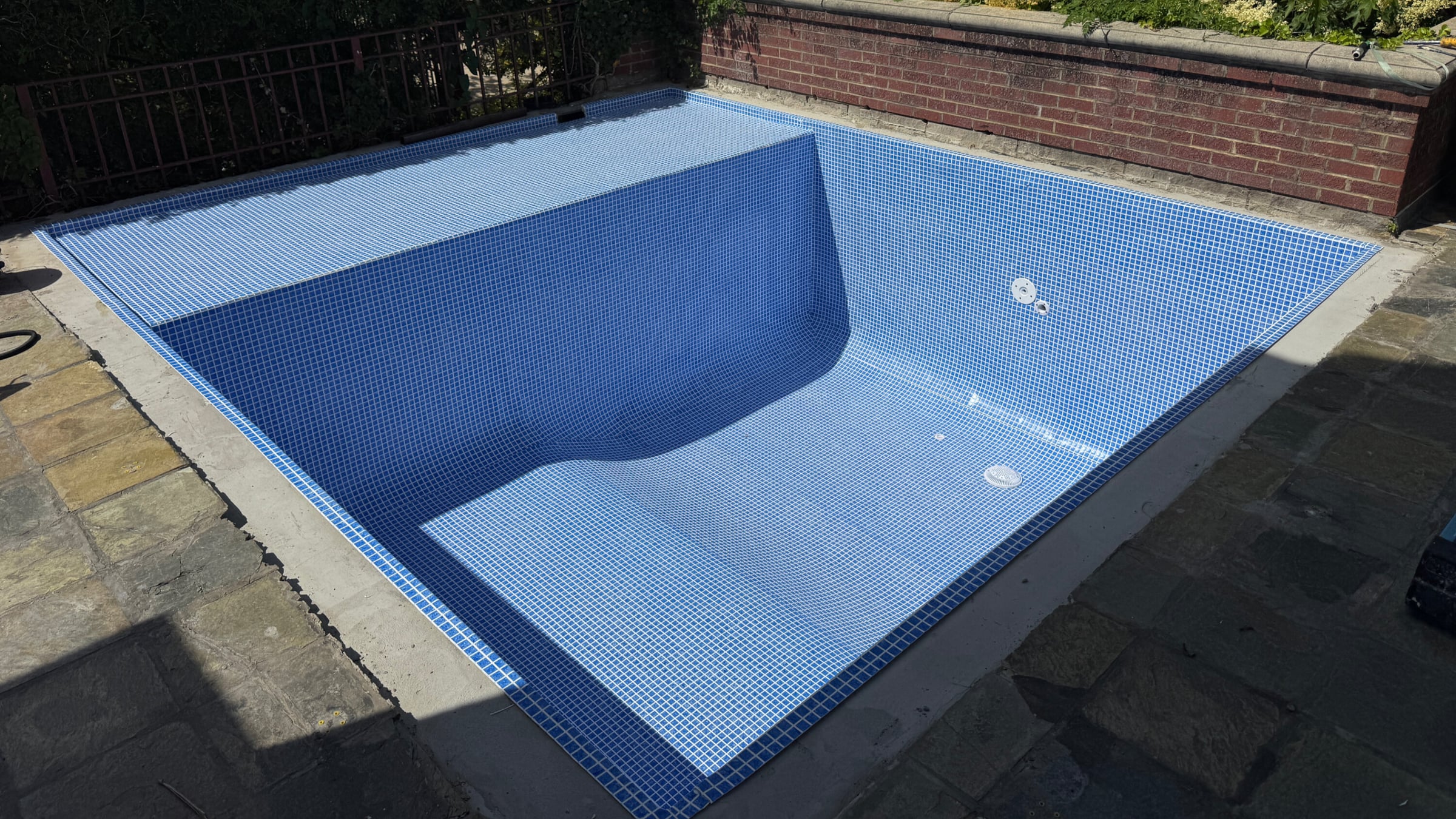

Photo documentation
See the pool at full frame.
Images are shown without aggressive cropping so the shell geometry, transitions and completed work stay visible.
Specified material
RENOLIT reinforced PVC membrane.
Residential membrane guide
Why this is different from a traditional vinyl liner.
Compare reinforced, field-welded PVC membrane with conventional 20–30 mil residential liner construction.
