01

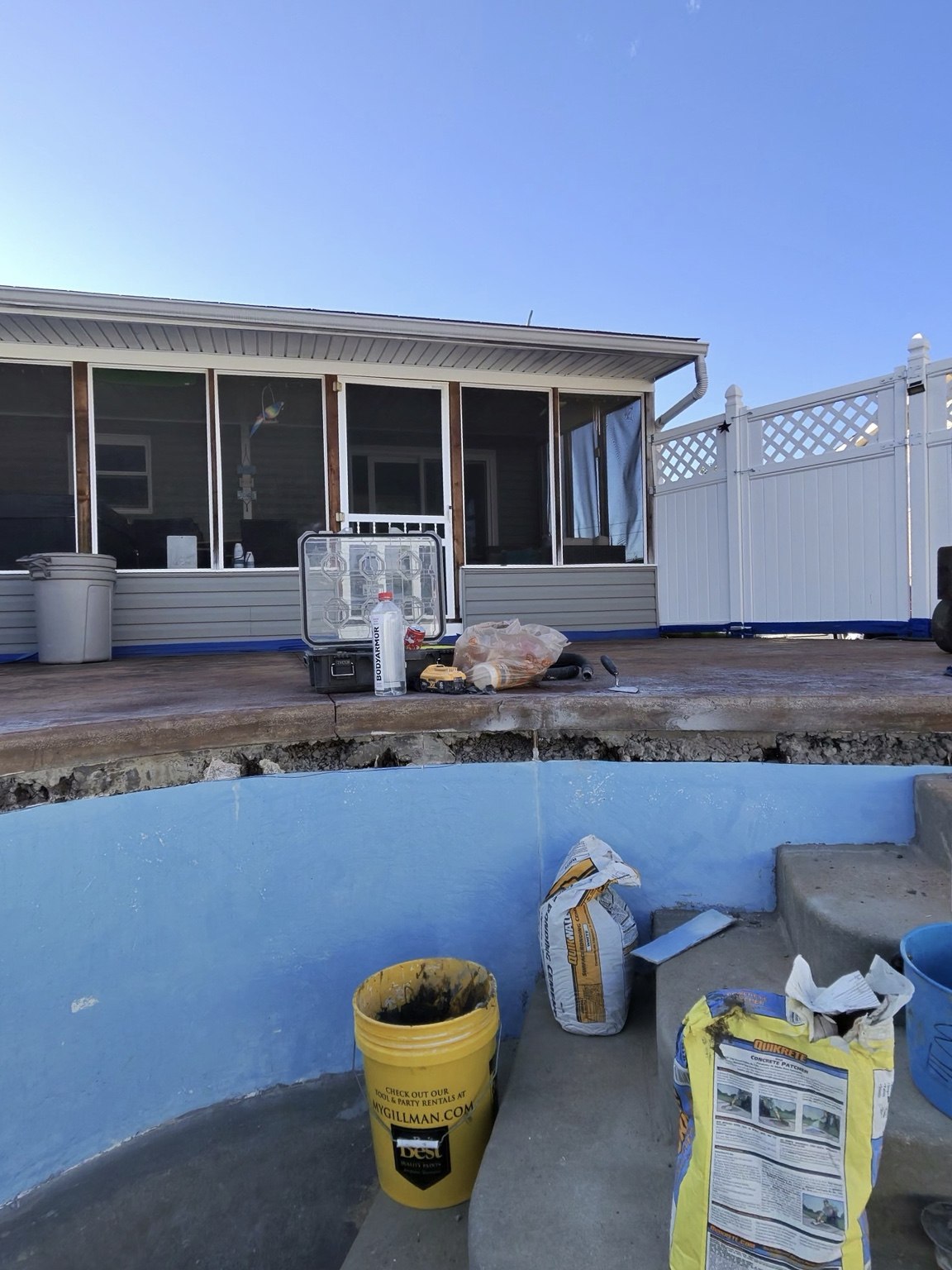

Fiberglass cut-back
The failing top four inches of fiberglass were removed, exposing the gap beneath the deck for wall backfill and repair.
Millersburg, Pennsylvania · Residential pool
Millersburg Residential Pool Renovation
A private backyard pool transformed with 1,100 square feet of 70-mil RENOLIT RELIEF membrane in Adriatic Blue, following fiberglass-shell repairs and careful surface preparation.Pool typeResidential pool
Project size1,100 sq. ft.
FinishAdriatic Blue
Installed system70-mil RENOLIT RELIEF · Adriatic Blue

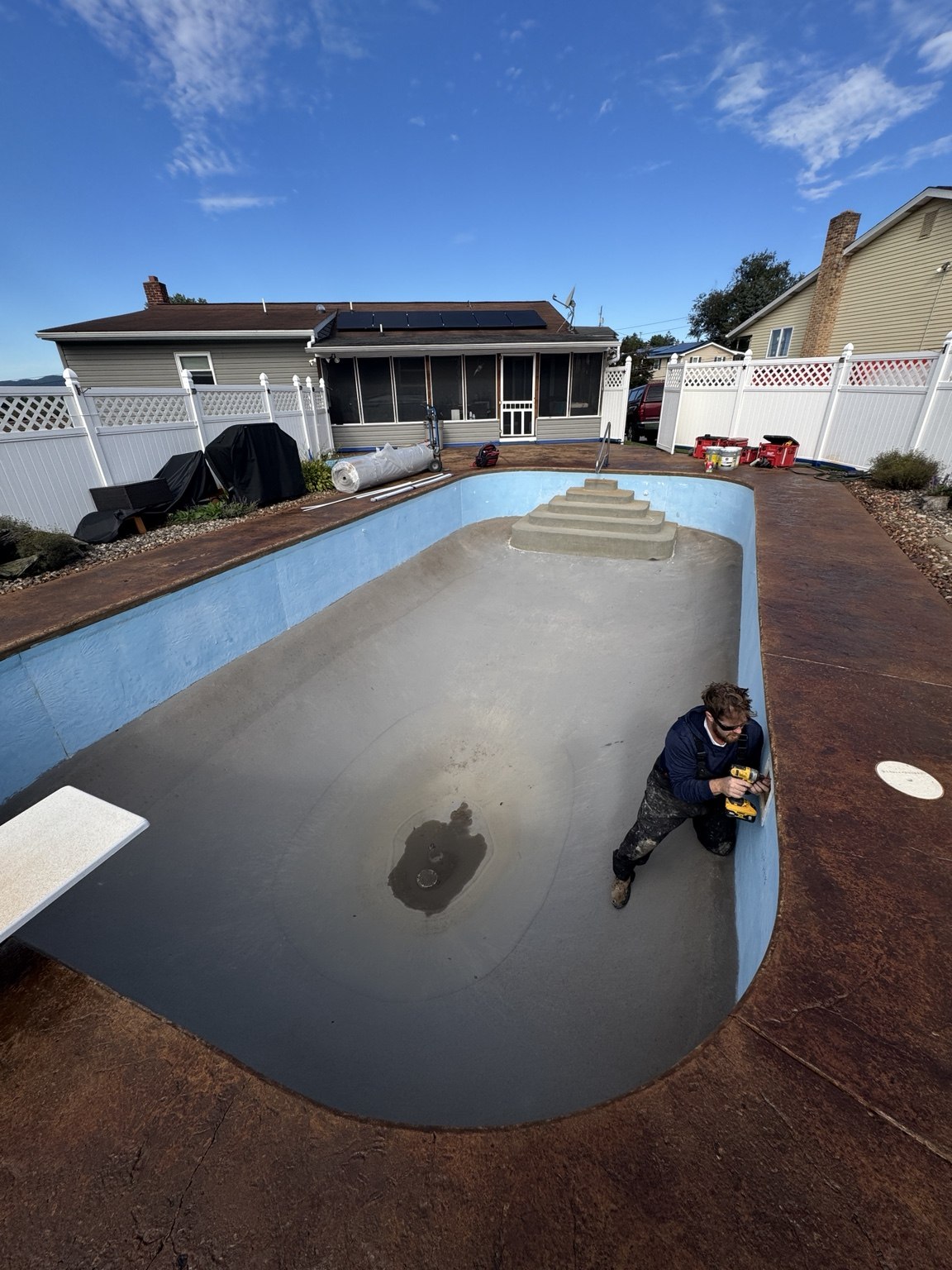

Before

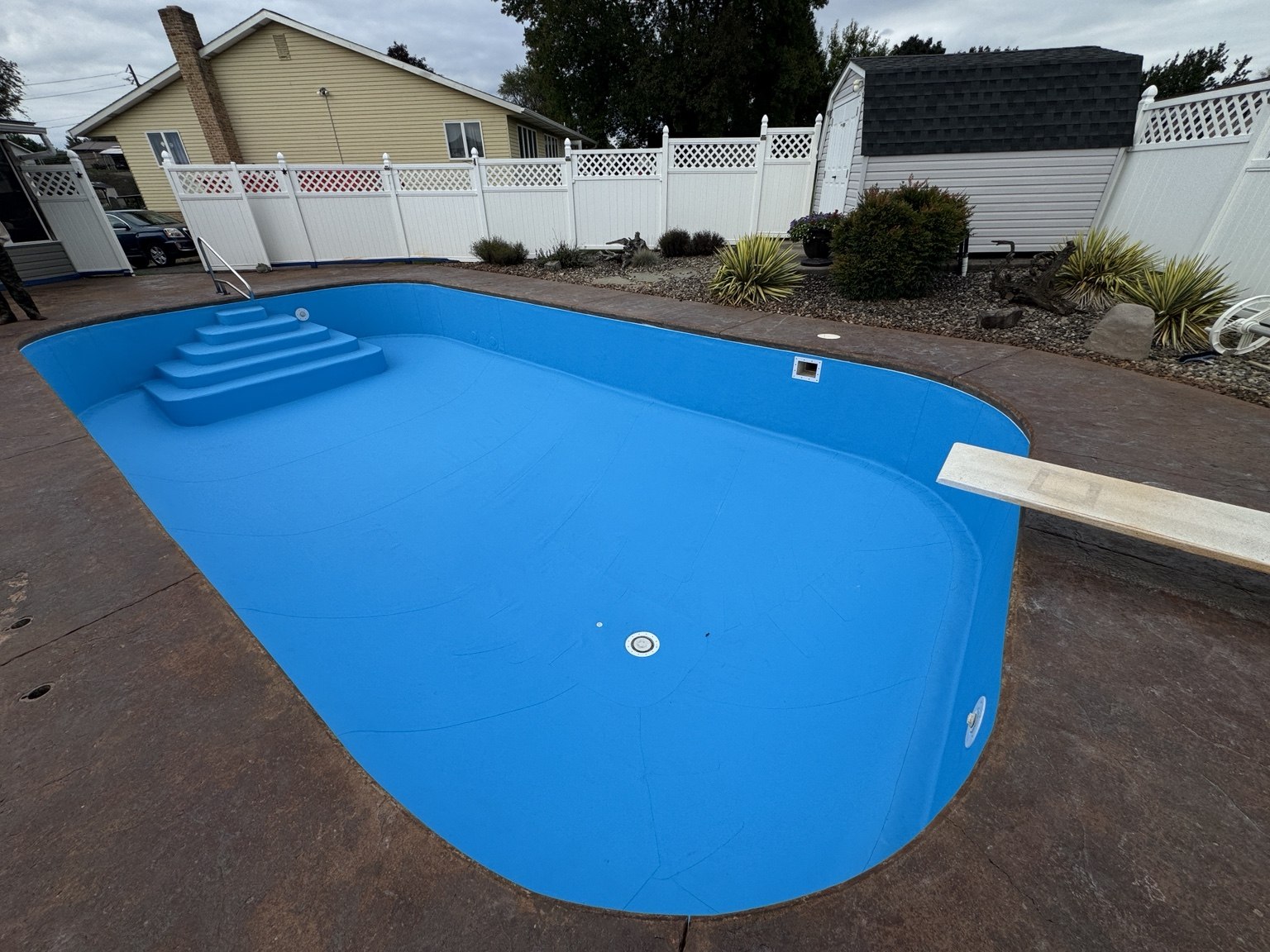

After
The existing condition
What the crew walked into.
The top four inches of the existing fiberglass shell were failing. The pool needed repairs at the wall perimeter and a prepared surface for the new membrane termination before installation could begin.
Field execution
How the system was rebuilt.
We cut away the failing top four inches of fiberglass, backfilled the walls, skim coated the surfaces and prepared the perimeter for termination installation. After fitting the felt protection layer, we installed 70-mil RENOLIT RELIEF membrane in Adriatic Blue across the walls, floor and steps. At the homeowner’s request, one light was covered and the rope hooks were cut off. The finished interior was kept plain blue, without depth markers, break stripes or contrasting step nosings.
Documented execution
From tear-out to a finished aquatic system.
Shell repairs, surface preparation and installation, documented step by step.
02

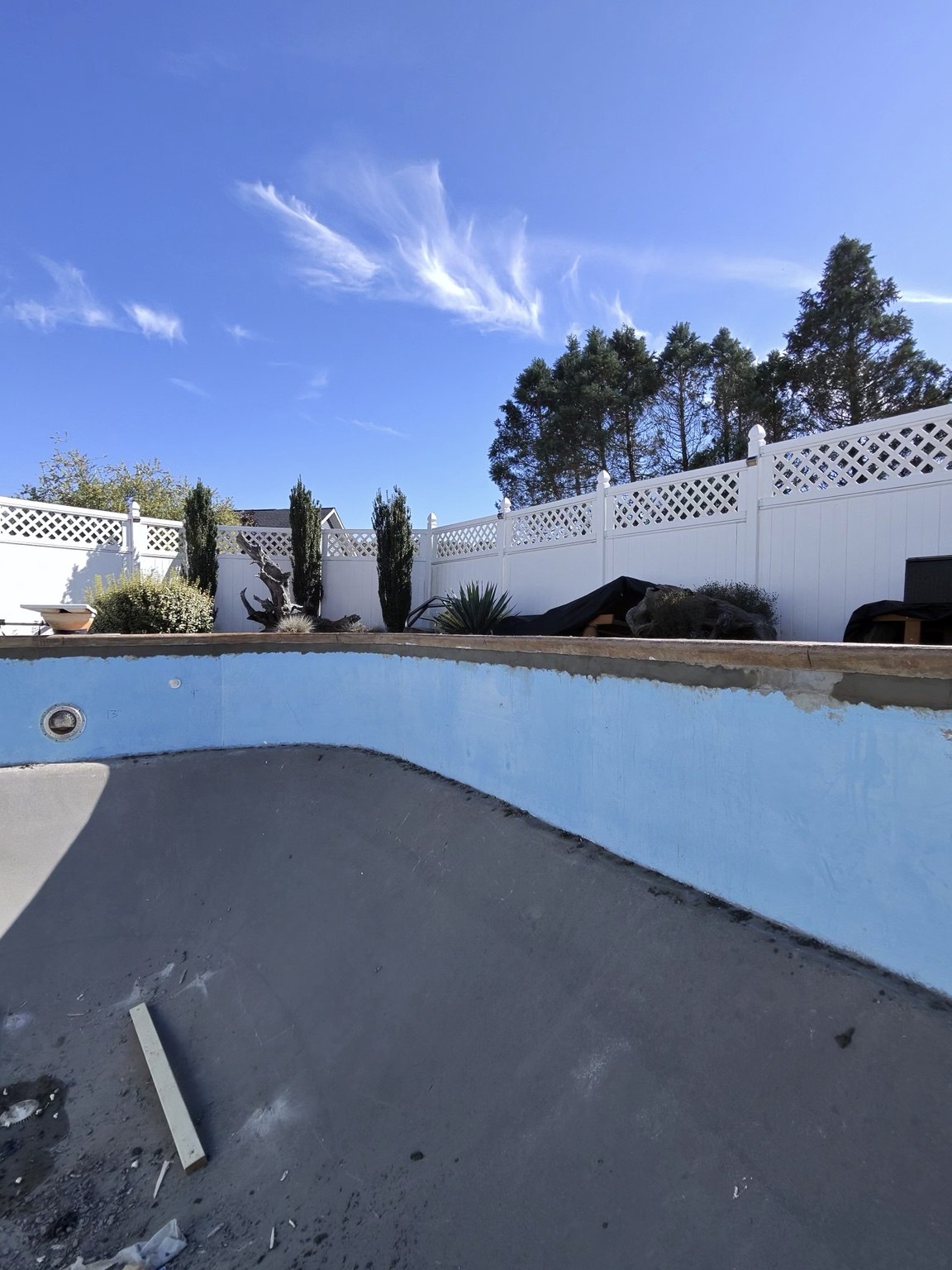

Backfill and skim coat
The wall perimeter was backfilled and skim coated, preparing the repaired edge for membrane termination.
03

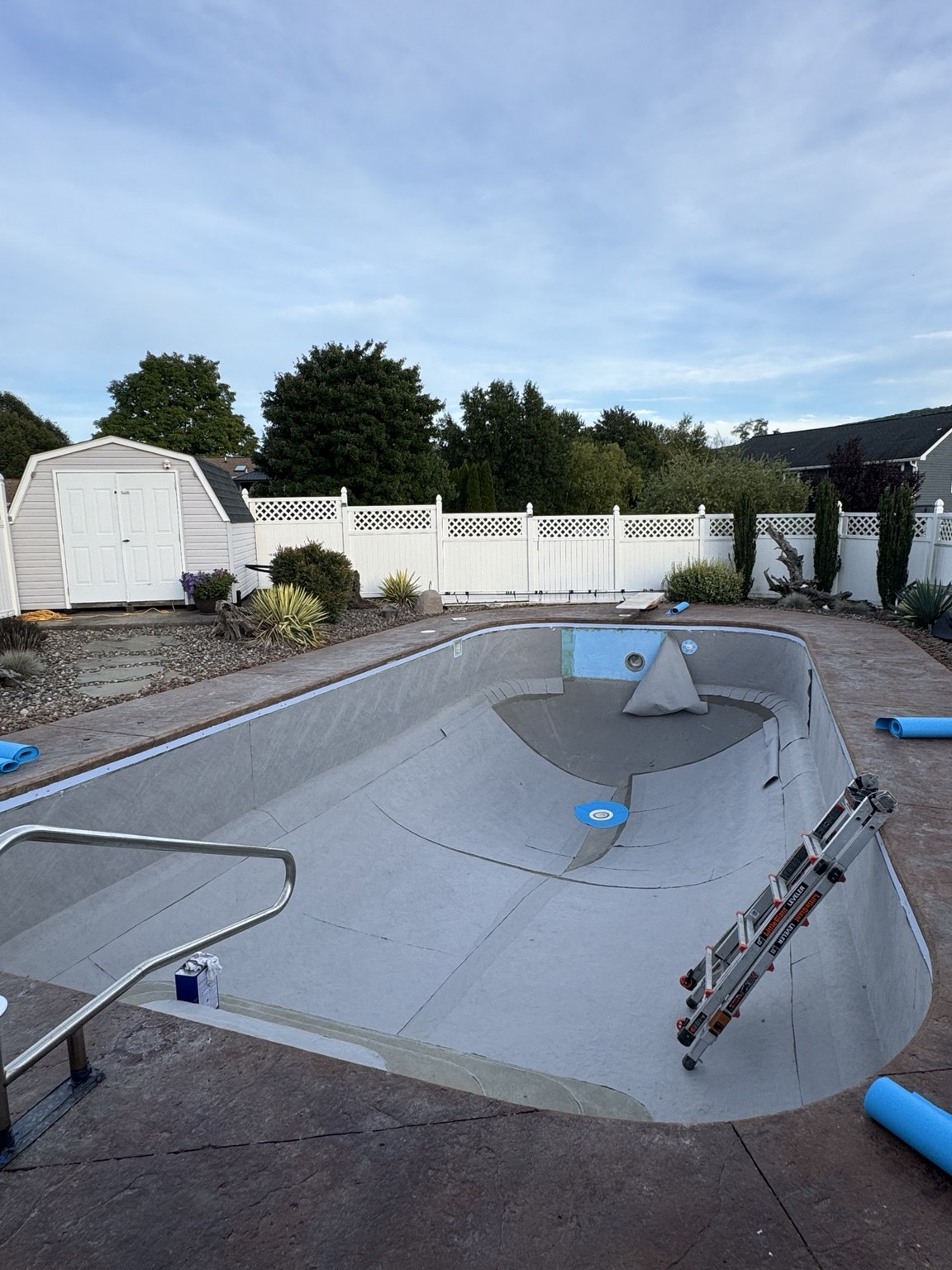

Felt protection
Felt was fitted over the pool surfaces before the membrane was installed.
04

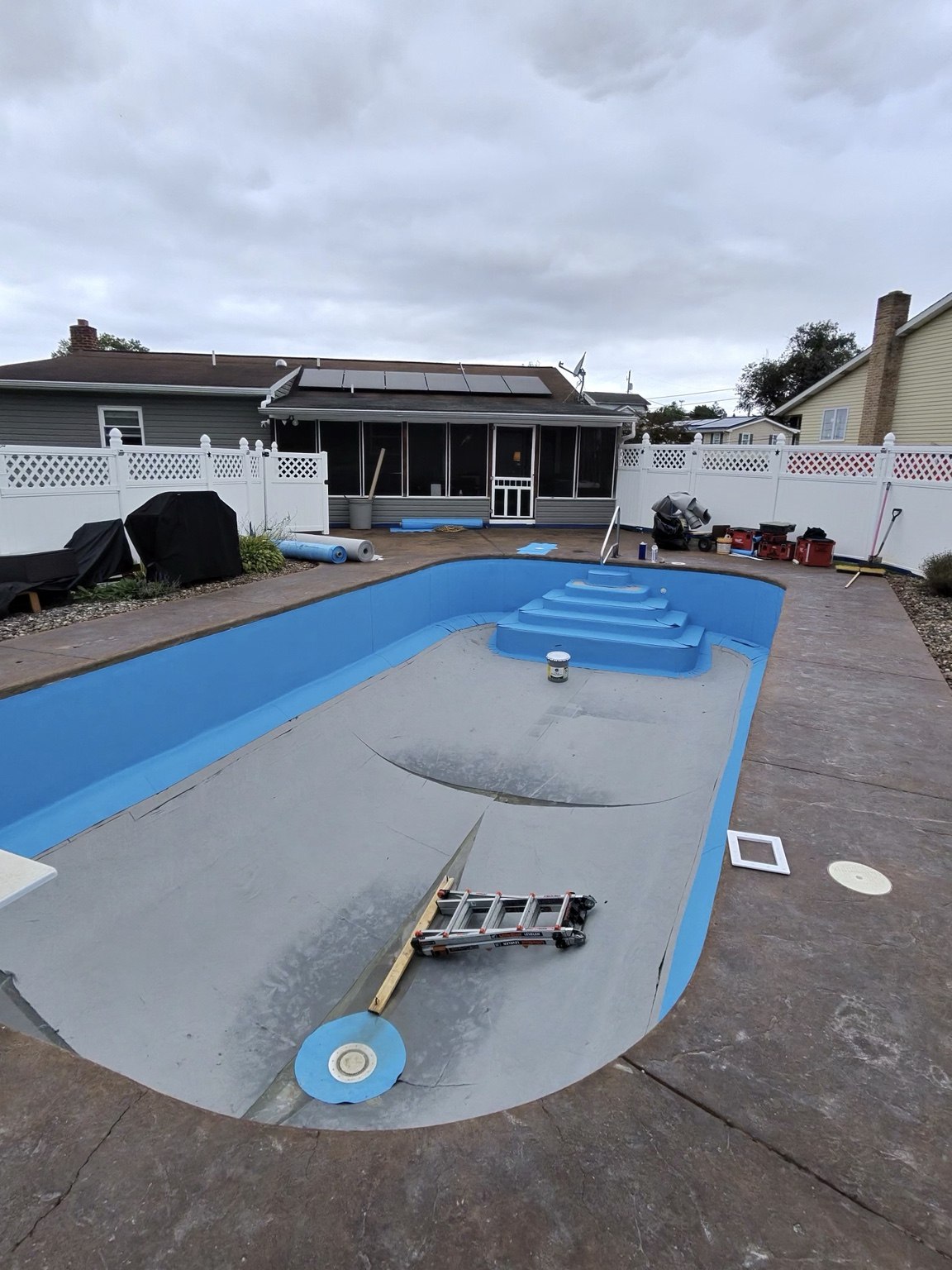

Membrane installation

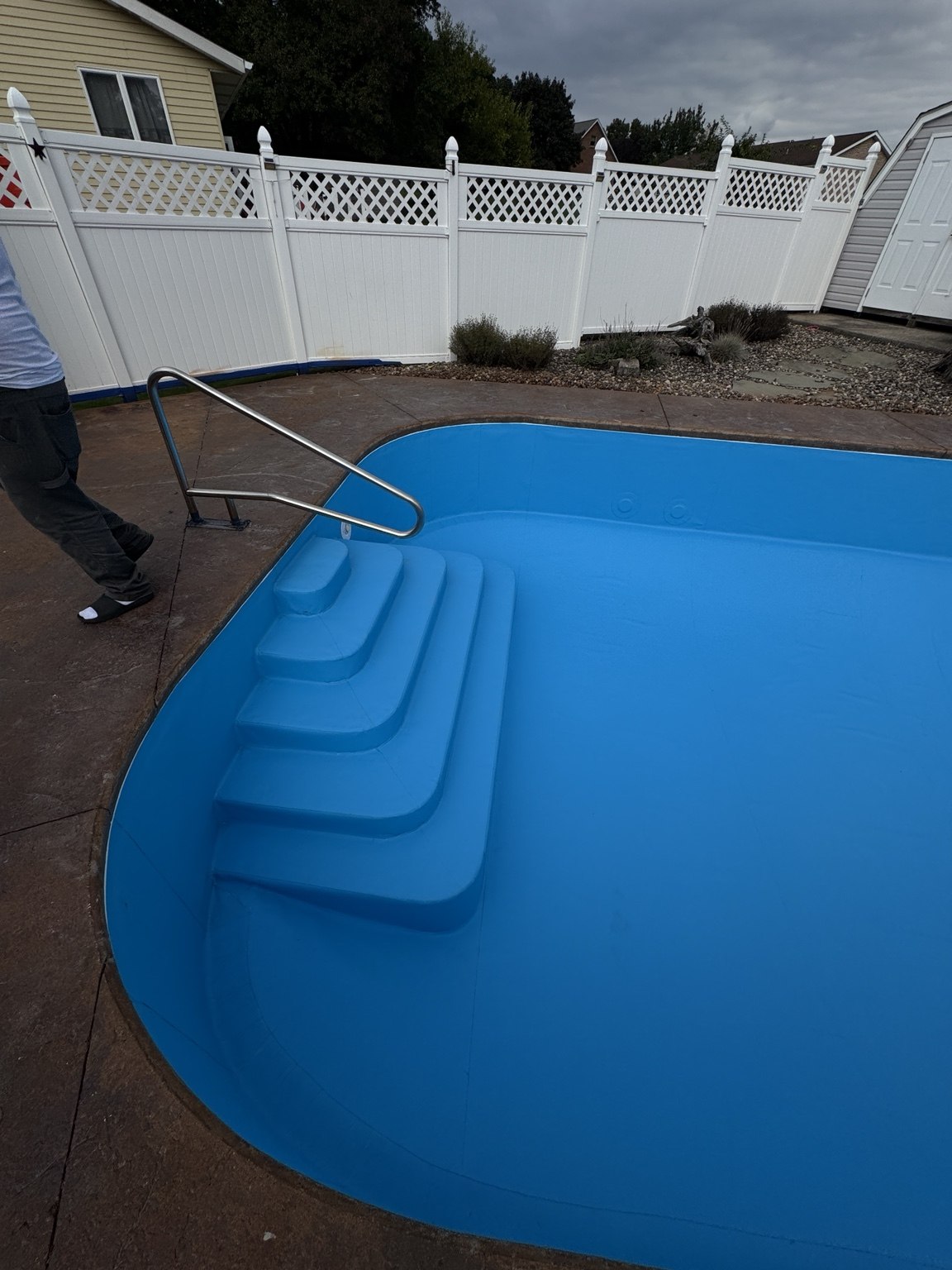

Adriatic Blue membrane was fitted to the walls and steps before completing the pool floor.
Scope of work
Detailed for long-term performance.
Each item was coordinated as part of the same waterproofing assembly—not treated as a separate finish detail.
- 01Removal of the failing top four inches of fiberglass shell
- 02Wall backfill, skim coating and surface preparation
- 03Perimeter preparation and membrane termination installation
- 04Felt protection layer fitted to the pool geometry
- 0570-mil RENOLIT RELIEF in Adriatic Blue on walls, floor and steps
- 06One pool light covered and rope hooks cut off at the homeowner’s request
- 07Plain blue finish without depth markers, break stripes or contrasting nosings
Photo documentation
See the pool at full frame.
Images are shown without aggressive cropping so the shell geometry, transitions and completed work stay visible.
Specified material
RENOLIT reinforced PVC membrane.
Residential membrane guide
Why this is different from a traditional vinyl liner.
Compare reinforced, field-welded PVC membrane with conventional 20–30 mil residential liner construction.
