Pittsburgh, Pennsylvania · Multifamily community
Pittsburgh Multifamily Pool Replacement
A failed 15-plus-year-old liner was removed to expose the concrete shell, then replaced with a reinforced white membrane system and contrasting coping wrap.
The existing condition
What the crew walked into.

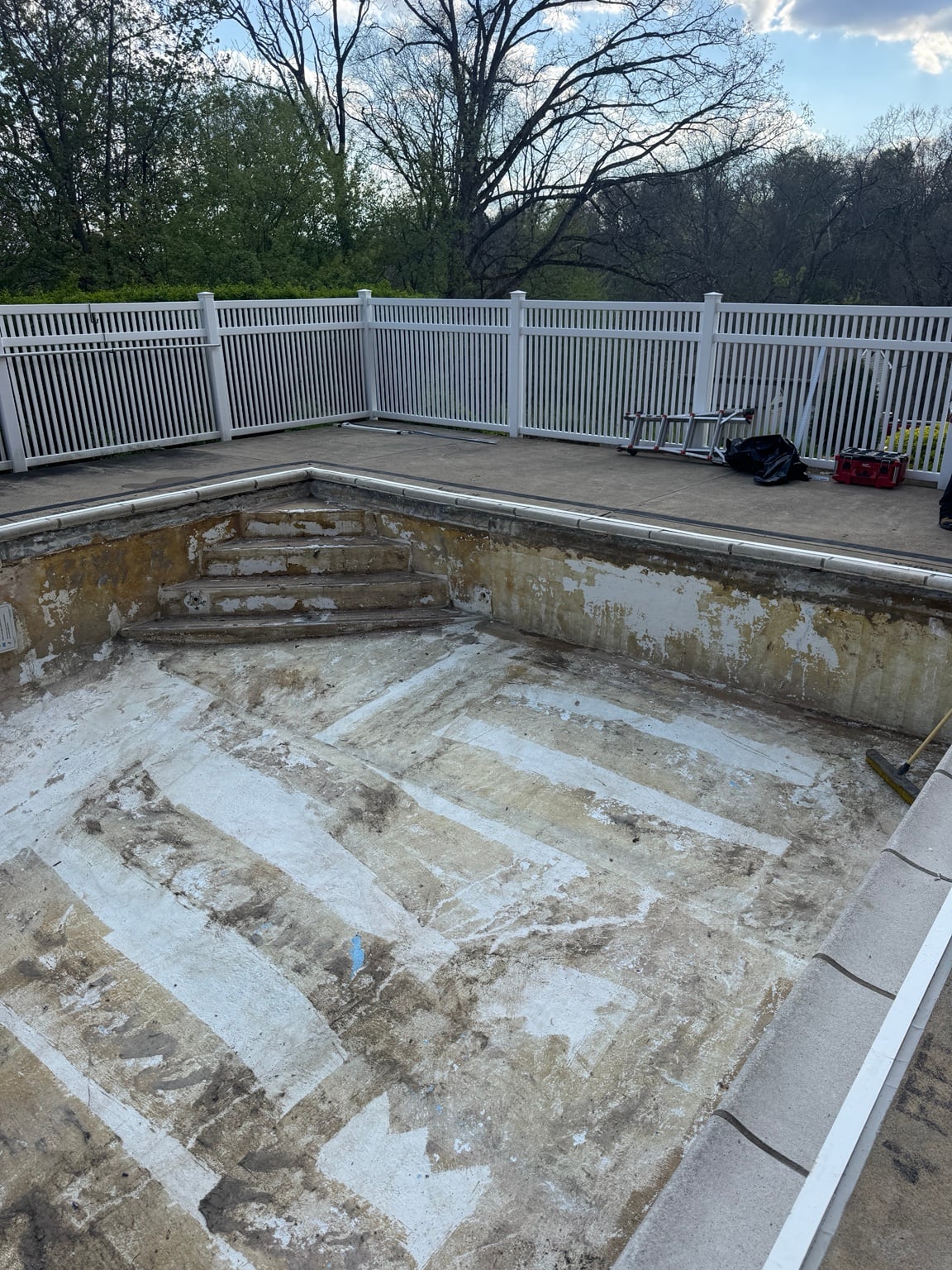

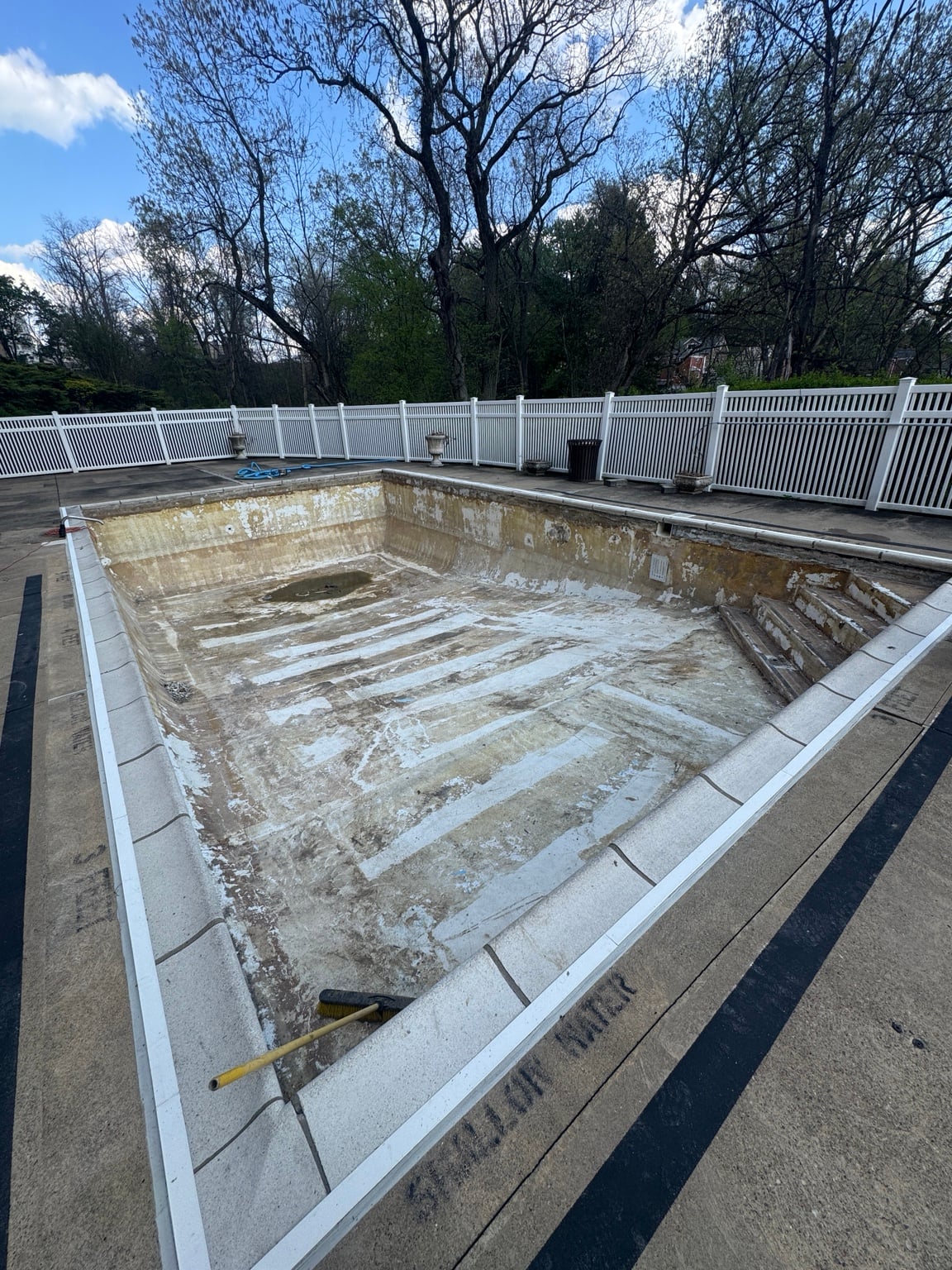

The existing liner had exceeded 15 years of service. Complete removal exposed a worn concrete shell and aging stair geometry that had to be prepared before the new waterproofing assembly could be installed.
Field execution
How the system was rebuilt.

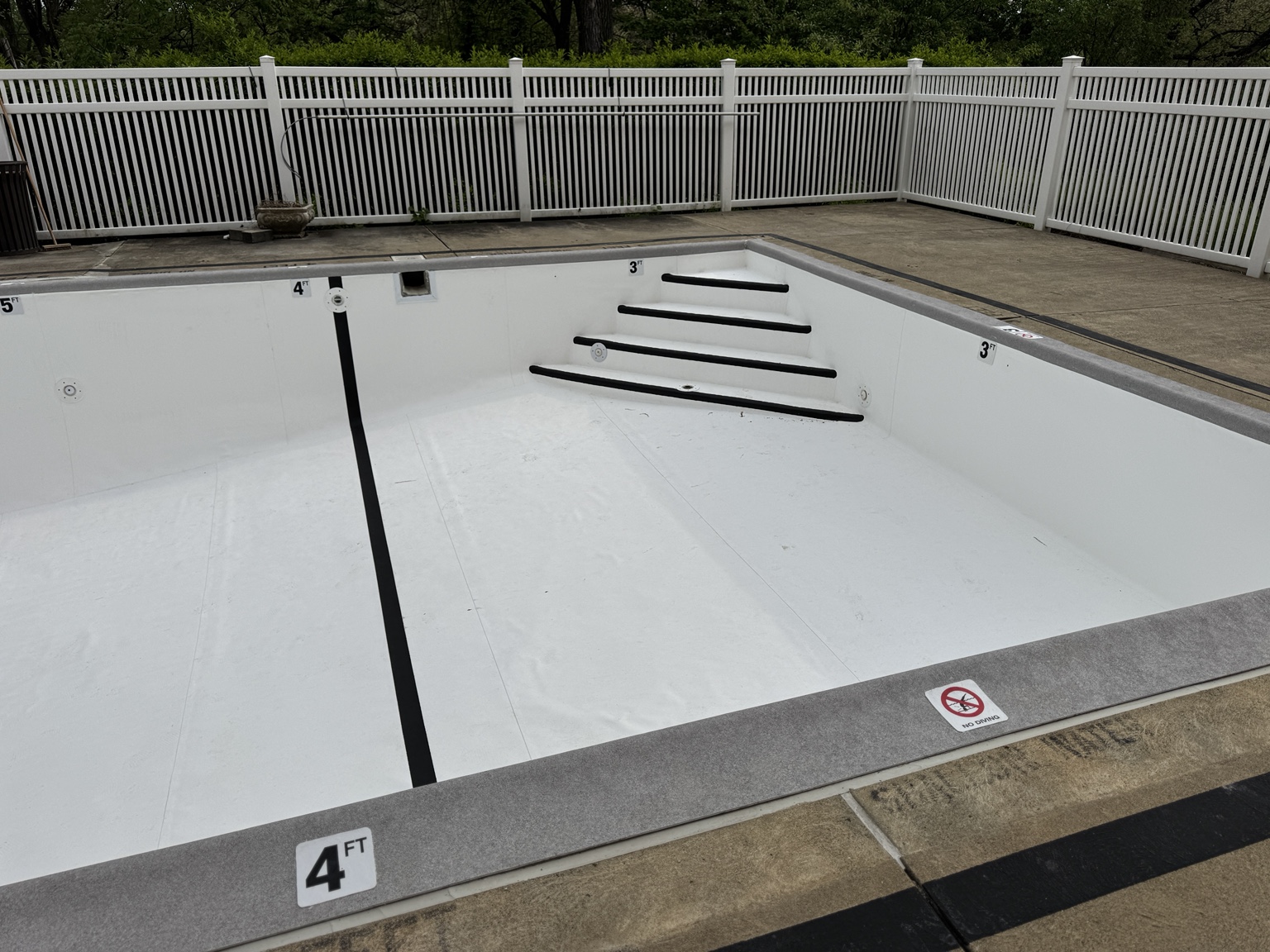

Ferguson Aquatics removed the aged liner, documented and prepared the exposed shell, installed the protection layer and 70-mil pool membrane, then completed the perimeter with a contrasting 80-mil coping wrap.
Scope of work
Detailed for long-term performance.
Each item was coordinated as part of the same waterproofing assembly—not treated as a separate finish detail.
- 01Existing liner tear-out
- 02Exposed concrete-shell preparation
- 03150-mil fleece protection layer
- 0470-mil RENOLIT reinforced PVC installation
- 0580-mil coping wrap
- 06Custom stair, fitting and safety-detail integration
Photo documentation
See the pool at full frame.
Images are shown without aggressive cropping so the shell geometry, transitions and completed work stay visible.
Specified material
